640mm Width UV DTF Printer Machine 300dpi -1200dpi MIMAKI UJV300DTF-75

Brand Name : MIMAKI

Model Number : UJV300DTF-75

Certification : CE

Place of Origin : Japan

MOQ : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10 Sets Per 1Month

Delivery Time : 7-15 Working Days

Packaging Details : Standard Packaging

Print head : On-demand piezo head

Print resolution : 300dpi, 600dpi, 900dpi, 1200dpi

Ink Type/Color : UV curable flexible ink ELS-170 (C, M, Y, K) UV curable hard ink ELH-100 (White, Clear)

Ink Capacity : 1L bottle

Ink circulation system : Available only for white ink

Max. print width : 640 mm (25.2 in)

Media Max. width : 650 mm (25.6 in)

Media Roll diameter : φ250 mm (9.8 in) or less

Media Roll weight : 45 kg (99.2 lb) or less

Interface : USB2.0 / Ethernet 1000 BASE-T

Certifications : VCCI class A / FCC class A / ETL IEC 62368-1 / CE Marking (EMC, Low voltage, Machinery directive and RoHS) / CB / REACH / Energy Star / RCM / KC

Power supply : Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz x 1

Power consumption : AC100V: 1.44kW or less / AC200V: 1.92kW or less

Operational environment : Temperature: 20-30 degC / 68-86 degF Humidity: 35-65% Rh (Non condensing)

Dimensions (W×D×H) : 2,090 x 930 x 1,475 mm (82.3 x 36.6 x 58.1 in)

Weight : 180 kg (396.8 lb)

product name : DTF Printer

Image Format : JPG, TIF, PDF, etc.

Print Color : CMYK+W

Media Type : Pet Film

Contact Now

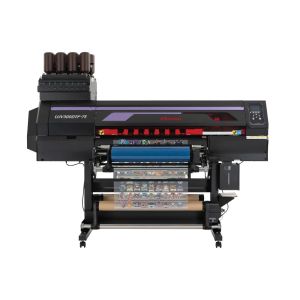

MIMAKI UJV300DTF-75 UV-DTF Printer

UV-DTF : Create High Value-Add Printing Business

"UJV300DTF-75" is a Mimaki's first UV-DTF (UV curable – Direct To Film) printer.

UV-DTF is a decoration method in which a design printed on a special film is transferred to the target material. It can easily decorate the surface of materials with uneven or curved surfaces, which has been difficult with conventional UV printing.

UV-DTF's exclusive film consists of two parts: a glued film and a transfer sheet.

UV-DTF eliminates the need for weeding (removal of margins) manually and allows confirmation of printed content before transfer, which significantly improves production efficiency and waste rates.

Mimaki Quality: High image quality and stability

The "UJV300DTF-75" is a UV-DTF printer that can be used with confidence, inheriting the high image quality and stable functions of our "UCJV300 series" UV inkjet printers, which continue to gain a high reputation in the market.

  • Less graininess and beautiful gradation. Accurate printing of small characters and fine lines
  • Support functions to minimize trouble. Automatic nozzle check [NCU] and nozzle recovery functions [NRS] reduce equipment downtime
  • Ink circulation function [MCT] keeps white ink density constant and prevents nozzle clogging
  • Media jam sensor prevents collision between the head and the film to prevent malfunctions due to operation errors

Specifications

UJV300DTF-75
Print head On-demand piezo head
Print resolution 300dpi, 600dpi, 900dpi, 1200dpi
Ink Type/Color UV curable flexible ink ELS-170 (C, M, Y, K)
UV curable hard ink ELH-100 (White, Clear)
Capacity 1L bottle
Ink circulation system Available only for white ink
Max. print width 640mm (25.2 in)
Media Max. width 650 mm (25.6 in)
Roll diameter φ250 mm (9.8 in) or less
Roll weight 45 kg (99.2 lb) or less
Interface USB2.0 / Ethernet 1000 BASE-T
Certifications VCCI class A / FCC class A / ETL IEC 62368-1 /
CE Marking (EMC, Low voltage, Machinery directive and RoHS) /
CB / REACH / Energy Star / RCM / KC
Power supply Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz x 1
Power consumption AC100V: 1.44kW or less / AC200V: 1.92kW or less
Operational environment Temperature: 20-30 degC / 68-86 degF
Humidity: 35-65% Rh (Non condensing)
Dimensions (W×D×H) 2,090 x 930 x 1,475 mm (82.3 x 36.6 x 58.1 in)
Weight 180 kg (396.8 lb)

640mm Width UV DTF Printer Machine 300dpi -1200dpi MIMAKI UJV300DTF-75
640mm Width UV DTF Printer Machine 300dpi -1200dpi MIMAKI UJV300DTF-75

Production Example of UJV300DTF-75

*Click to view larger image.

640mm Width UV DTF Printer Machine 300dpi -1200dpi MIMAKI UJV300DTF-75 640mm Width UV DTF Printer Machine 300dpi -1200dpi MIMAKI UJV300DTF-75 640mm Width UV DTF Printer Machine 300dpi -1200dpi MIMAKI UJV300DTF-75 640mm Width UV DTF Printer Machine 300dpi -1200dpi MIMAKI UJV300DTF-75
Helmet Mug Electric kettle Flower pot
640mm Width UV DTF Printer Machine 300dpi -1200dpi MIMAKI UJV300DTF-75 640mm Width UV DTF Printer Machine 300dpi -1200dpi MIMAKI UJV300DTF-75 640mm Width UV DTF Printer Machine 300dpi -1200dpi MIMAKI UJV300DTF-75 640mm Width UV DTF Printer Machine 300dpi -1200dpi MIMAKI UJV300DTF-75
Wine glass Skateboard Electronic device Trash can (Functional Indication)
