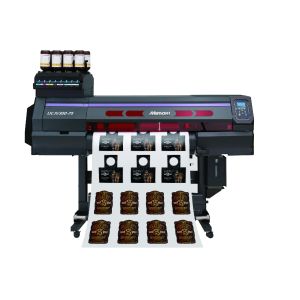

4 Layer / 5 Layer Mimaki UCJV300-75 Roll To Roll UV Printing Machine

Brand Name : JOYINJET

Model Number : UCJV300-75

Certification : CE

Place of Origin : CHINA

MOQ : Negotiable

Print head : On-demand piezo head

Print resolution : 300dpi, 600dpi, 900dpi, 1200dpi

Droplet size : Min. 7pl, Max. 28pl

Head gap : 3 degrees adjustment (2.0/2.5/3.0 mm) by manual

Ink Type/Color : LED-UV ink: LUS-170 (C, M, Y, K, Lc, Lm, W, Cl) LED-UV ink: LUS-175 (C, M, Y, K, Lc, Lm, W, Cl) *Only available in specific countries LED-UV ink: LUS-200 (C, M, Y, K, W)

Ink Capacity : 1L (Bottle supply)

Max. print width : 800 mm (31.5 in)

Max. media width : 810 mm (31.9 in)

Media thickness : 1.0 mm or less

Media roll outer diameter : φ250 mm or less

Media roll weight : 40 kg (88.2 lb) or less

Cut speed : Max. 300 mm/s (420 mm/s in 45 degrees direction)

Cut pressure : 10-450 gf

Cutter Types : Eccentric cutter, Blade for small character, Blade for reflective sheet, Blade for fluorescent sheet, Blade for PVC with low-pressure

Safety standard : VCCI Class A / FCC Class A / UL 60950-1 ETL / CE Marking (EMC, Low voltage, Machinery directive, RoHS) / CB Report / REACH / ENERGY STAR® / RCM

Interface : USB2.0 / Ethernet 1000 BASE-T

Power supply : Single phase (AC100-120 / 200-240V±10%, 50/60Hz±1Hz)

Power consumption : AC100V: 1.44kW / AC200V: 1.92kW

Operational environment : Temperature: 20-30 degC / 68-86 degF Humidity: 35-65% Rh (Non condensing)

Dimensions (W×D×H) : 2,090 x 776 x 1,475 mm (82.3 x 30.6 x 58.1 in)

Weight : 144 kg (317.5 lb)

Packaging Details : Standard Packaging

Delivery Time : 7-15 Working Days

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

product name : UV Roll to Roll Printer

feature : High precision,High Production

brand : MIMAKI

Technology : Advanced UV-LED

Design : Eco-Friendly

Contact Now

Mimaki UCJV300-75 High specifcation model avallable with 4-layer/5-layer print LED-UV Print & Cut lnkjet Printer

Leading the Future of Sign Graphics through UV Innovation

[UCJV300 Series] is a versatile inkjet printer having a combined function of both printing and cutting mounted with UV-curable ink.

[UCJV300 Series] is a high spec model equipped with the 4-layer/5-layer print function in addition to UV LED print and Print&Cut.
This new model is enough to cover wider ranges from a quick job with short delivery time to an avant-garde signboard.

Product outlines

  1. "Multilayer print" for a new advertisement expression
    - 4 layer print [Day & Night Printing]
    - 5 layer print [Front & Back Printing]
  2. On-demand print utilizing UV characteristics
    - Quick access to next processing and sign applying due to UV ink property
    - Wide range of applications
  3. Newly developed environmentally friendly UV ink, [LUS-170] and [LUS-175]
    - Clear ink added!
  4. Flexible UV Ink [LUS-200]
  5. Productive cutting functions. A new function, [ID Cut] will highly improve the work efficiency
  6. Upgraded RIP software, [RasterLink6Plus], [RasterLink7]

Line-up

UCJV300-75

Printable up to 800 mm width.
Small foot-print and versatile model covering wide range of stickers, labels and point of sales materials making.

Specifications

UCJV300-75 UCJV300-107 UCJV300-130 UCJV300-160
Print head On-demand piezo head
Print resolution 300dpi, 600dpi, 900dpi, 1200dpi
Droplet size Min. 7pl, Max. 28pl
Head gap 3 degrees adjustment (2.0/2.5/3.0 mm) by manual
Ink Type/Color LED-UV ink: LUS-170 (C, M, Y, K, Lc, Lm, W, Cl)
LED-UV ink: LUS-175 (C, M, Y, K, Lc, Lm, W, Cl)
*Only available in specific countries
LED-UV ink: LUS-200 (C, M, Y, K, W)
Capacity 1L (Bottle supply)
Max. print width 800 mm
(31.5 in)		 1,090 mm
(42.9 in)		 1,361 mm
(53.5 in)		 1,610 mm
(63.4 in)
Max. media width 810 mm
(31.9 in)		 1,100 mm
(43.3 in)		 1,371 mm
(54.0 in)		 1,620 mm
(63.8 in)
Media thickness 1.0 mm or less
Media roll outer diameter φ250 mm or less
Media roll weight 40 kg (88.2 lb) or less
Cut speed Max. 300 mm/s (420 mm/s in 45 degrees direction)
Cut pressure 10-450 gf
Cutter Types Eccentric cutter, Blade for small character, Blade for reflective sheet,
Blade for fluorescent sheet, Blade for PVC with low-pressure
Safety standard VCCI Class A / FCC Class A / UL 60950-1 ETL /
CE Marking (EMC, Low voltage, Machinery directive, RoHS) /
CB Report / REACH / ENERGY STAR® / RCM
Interface USB2.0 / Ethernet 1000 BASE-T
Power supply Single phase (AC100-120 / 200-240V±10%, 50/60Hz±1Hz)
Power consumption AC100V: 1.44kW / AC200V: 1.92kW
Operational environment Temperature: 20-30 degC / 68-86 degF
Humidity: 35-65% Rh (Non condensing)
Dimensions (W×D×H) 2,090 x 776 x 1,475 mm
(82.3 x 30.6 x 58.1 in)		 2,380 x 776 x 1,475 mm
(93.7 x 30.6 x 58.1 in)		 2,650 x 776 x 1,475 mm
(104.3 x 30.6 x 58.1 in)		 2,900 x 776 x 1,475 mm
(114.2 x 30.6 x 58.1 in)
Weight 144 kg
(317.5 lb)		 161 kg
(354.9 lb)		 177 kg
(390.2 lb)		 188 kg
(414.5 lb)

Ink set

LUS-170
［C,M,Y,K,Lc,Lm,W,Cl］		 C　M　Y　K
C　M　Y　K　Lc　Lm　W
C　M　Y　K　W　Cl
LUS-175
［C,M,Y,K,Lc,Lm,W,Cl］		 C　M　Y　K
C　M　Y　K　Lc　Lm　W
C　M　Y　K　W　Cl
LUS-200
［C,M,Y,K,W］		 C　M　Y　K
C　M　Y　K　W

Production Example of UCJV300 Series

*Click to view larger image.

4 Layer / 5 Layer Mimaki UCJV300-75 Roll To Roll UV Printing Machine 4 Layer / 5 Layer Mimaki UCJV300-75 Roll To Roll UV Printing Machine 4 Layer / 5 Layer Mimaki UCJV300-75 Roll To Roll UV Printing Machine 4 Layer / 5 Layer Mimaki UCJV300-75 Roll To Roll UV Printing Machine
Outdoor signboard Illumination signboard Poster Banners and flags (fabric)
4 Layer / 5 Layer Mimaki UCJV300-75 Roll To Roll UV Printing Machine 4 Layer / 5 Layer Mimaki UCJV300-75 Roll To Roll UV Printing Machine 4 Layer / 5 Layer Mimaki UCJV300-75 Roll To Roll UV Printing Machine 4 Layer / 5 Layer Mimaki UCJV300-75 Roll To Roll UV Printing Machine
Swing P.O.P. (PET film) Label Wallpaper Shoji (sliding paper door)


4 Layer / 5 Layer Mimaki UCJV300-75 Roll To Roll UV Printing Machine
4 Layer / 5 Layer Mimaki UCJV300-75 Roll To Roll UV Printing Machine
4 Layer / 5 Layer Mimaki UCJV300-75 Roll To Roll UV Printing Machine
